Description

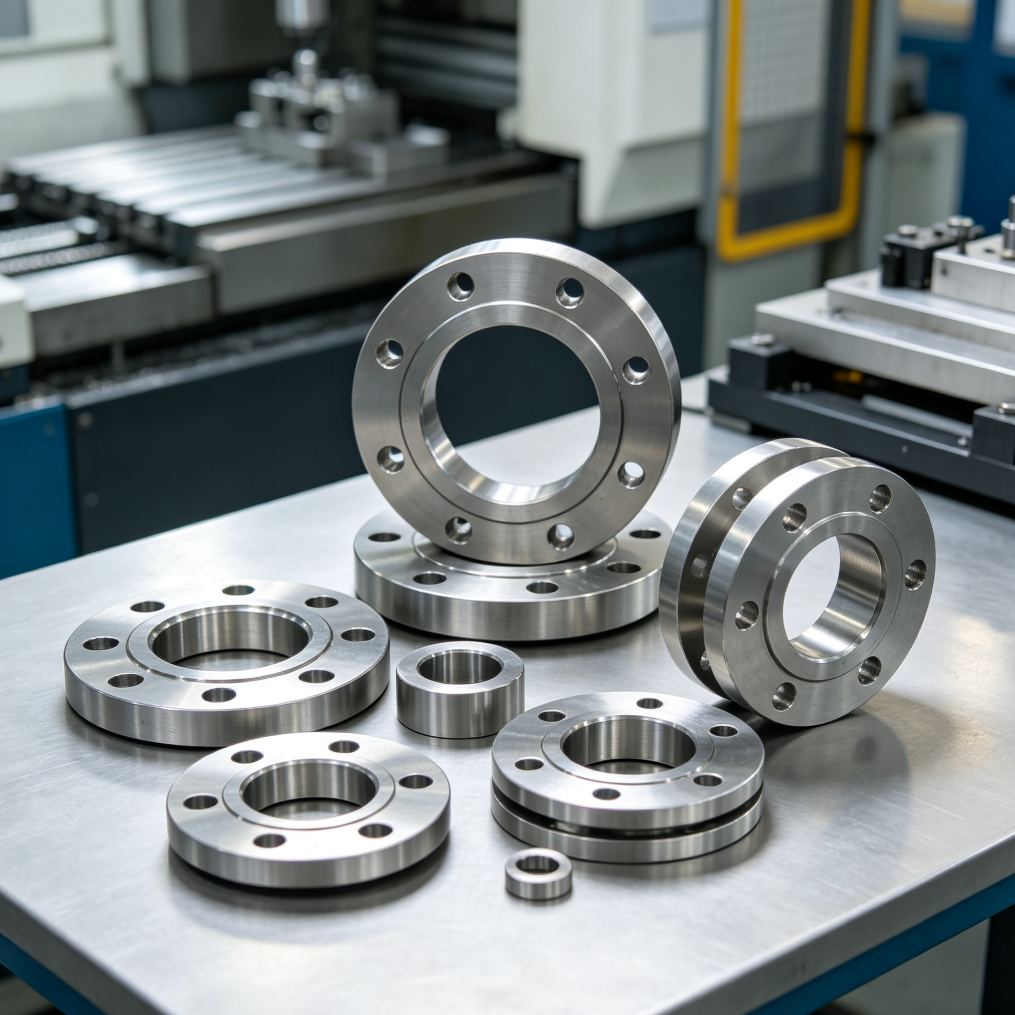

Flanges provide connection points in piping and mechanical assemblies, and the bolt hole pattern must be spaced accurately. Our custom CNC flange service machines metal flanges from plate or bar. You specify the outer diameter, thickness, centre bore, and the bolt circle details, including the number and size of holes. The flange is produced on a CNC mill, ensuring even spacing and correct hole positions. Flanges can be flat-faced or raised-face as required, and materials include steel, stainless steel, and aluminium. The service is suitable for replacements and for new pipe or machine connections.
Your drawing should show:
- Flange outer diameter and thickness
- Centre bore diameter
- Bolt circle diameter and hole size
- The number of bolt holes
The listed figure is a deposit for a flange quotation. The final cost depends on the flange size, hole count, material, and quantity. Please fill in our flange form with your drawing attached, and we will return a firm price.
